About this item
- Universal Fit: This DT wiring harness is specially designed for Dual Light Mode Off Road Lights DRL lights especially Nilight Nixmen series L0160C-D, L0175C-D, L01120C-D, L01165C-D, L02120C, L02150C etc
- Premium Quality: The DT Wiring Harness Kit is made of 16 Gauge flexible strand copper wire, ABS 3-pin Socket, High-quality PA66 nylon, and PVC insulation tube to protect the whole harness from overheating and can bear high temperatures up to 120C, making the extension Kit durable wear-resisting, excellent electrical conductivity outstanding bending performance and melting resistant longer lifespan
- Circuit Protection: Dual control mode switch, the red indicator light lights up to indicate that the main light is on, and the green indicator light indicates that the DRL is on, which is convenient to turn on or off. Power relay - safety protection and conversion circuit, chip fuse protects the circuit in the event of over current or short circuit

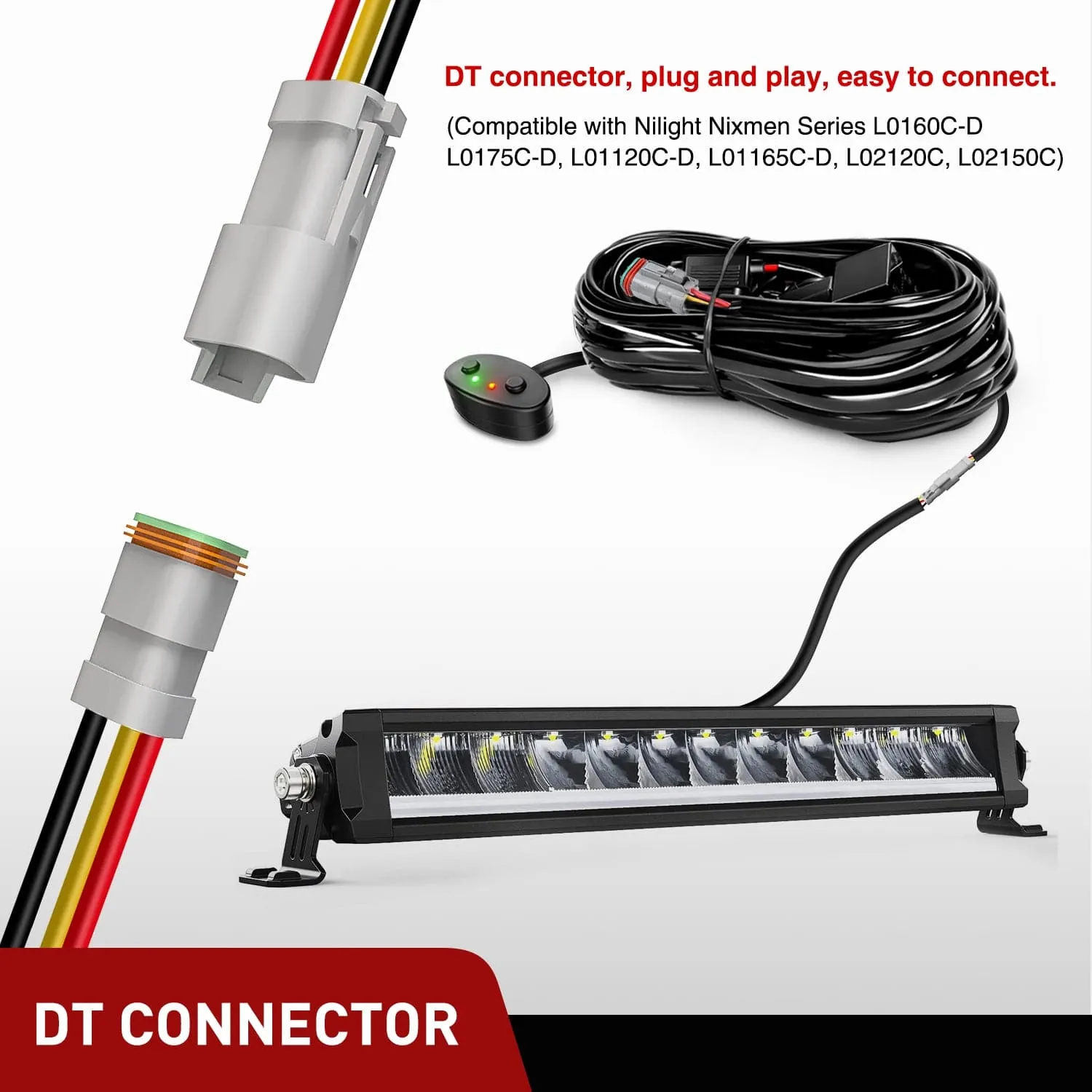

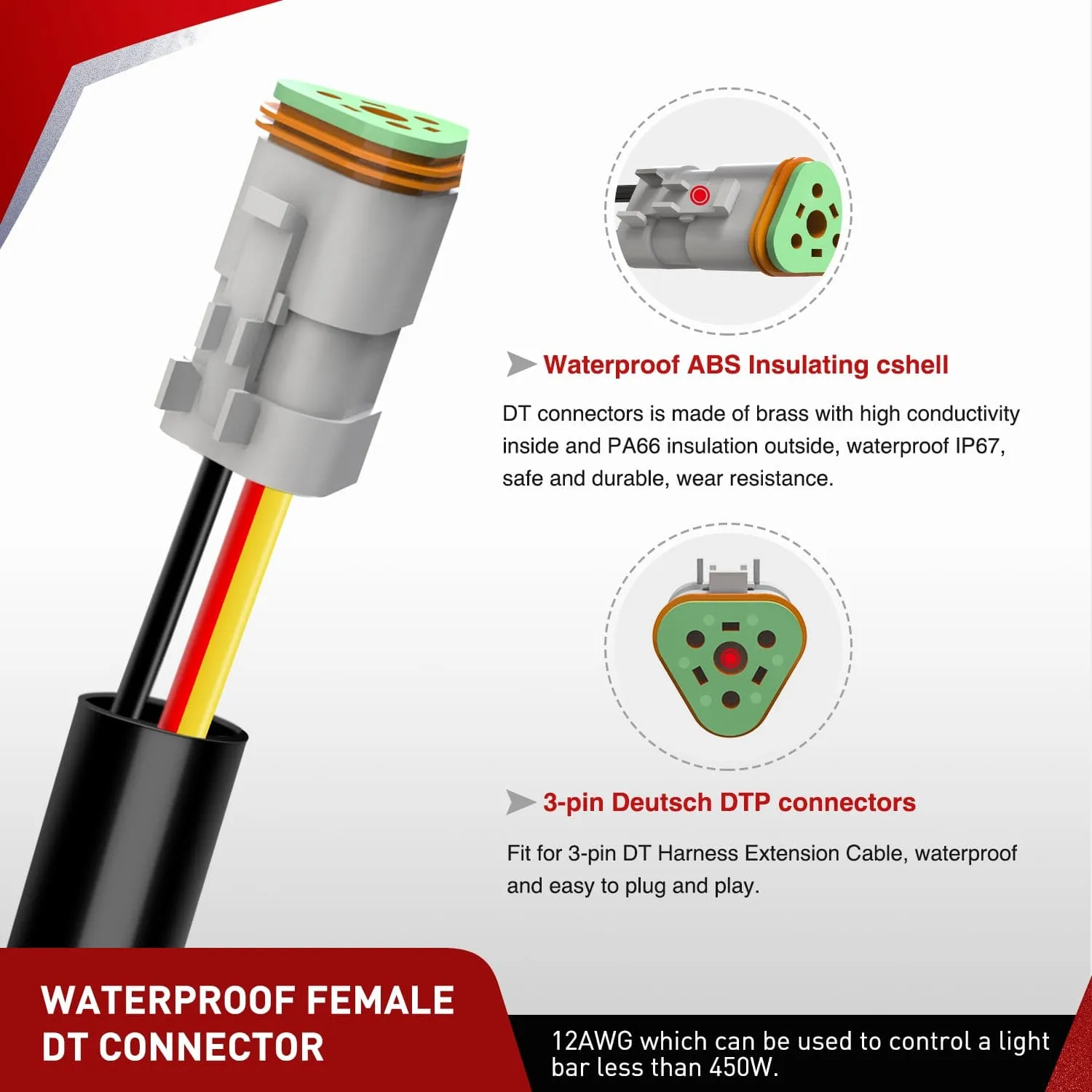

- Simple Connection: equipped with DT connector, no wiring between LED light bar and the harness kit, simple and easy installation

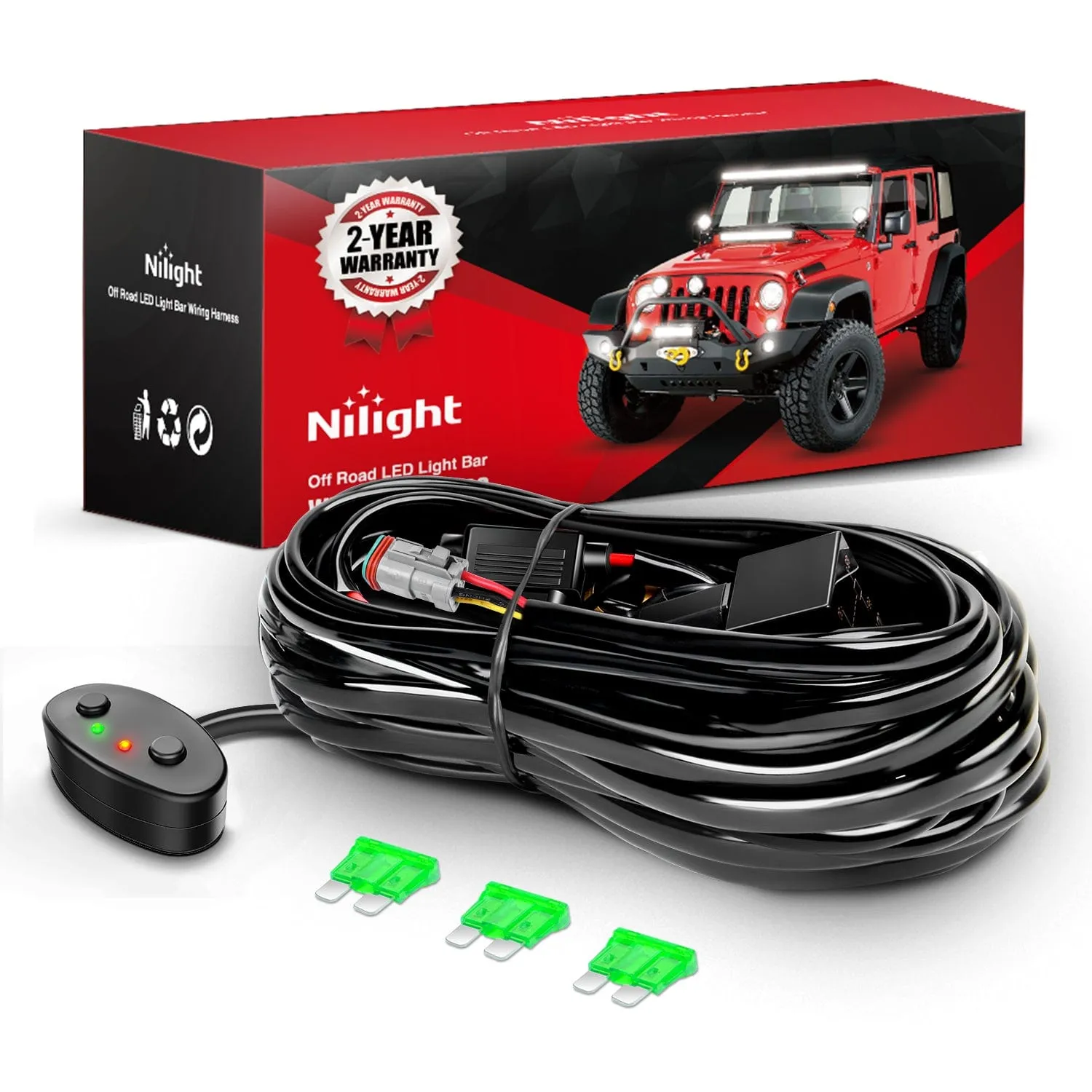

- Package Includes: 1 x 12AWG DT Connector Wiring Harness Kit, 1 x instructions, 2 Years Warranty Honored by Nilight
Features

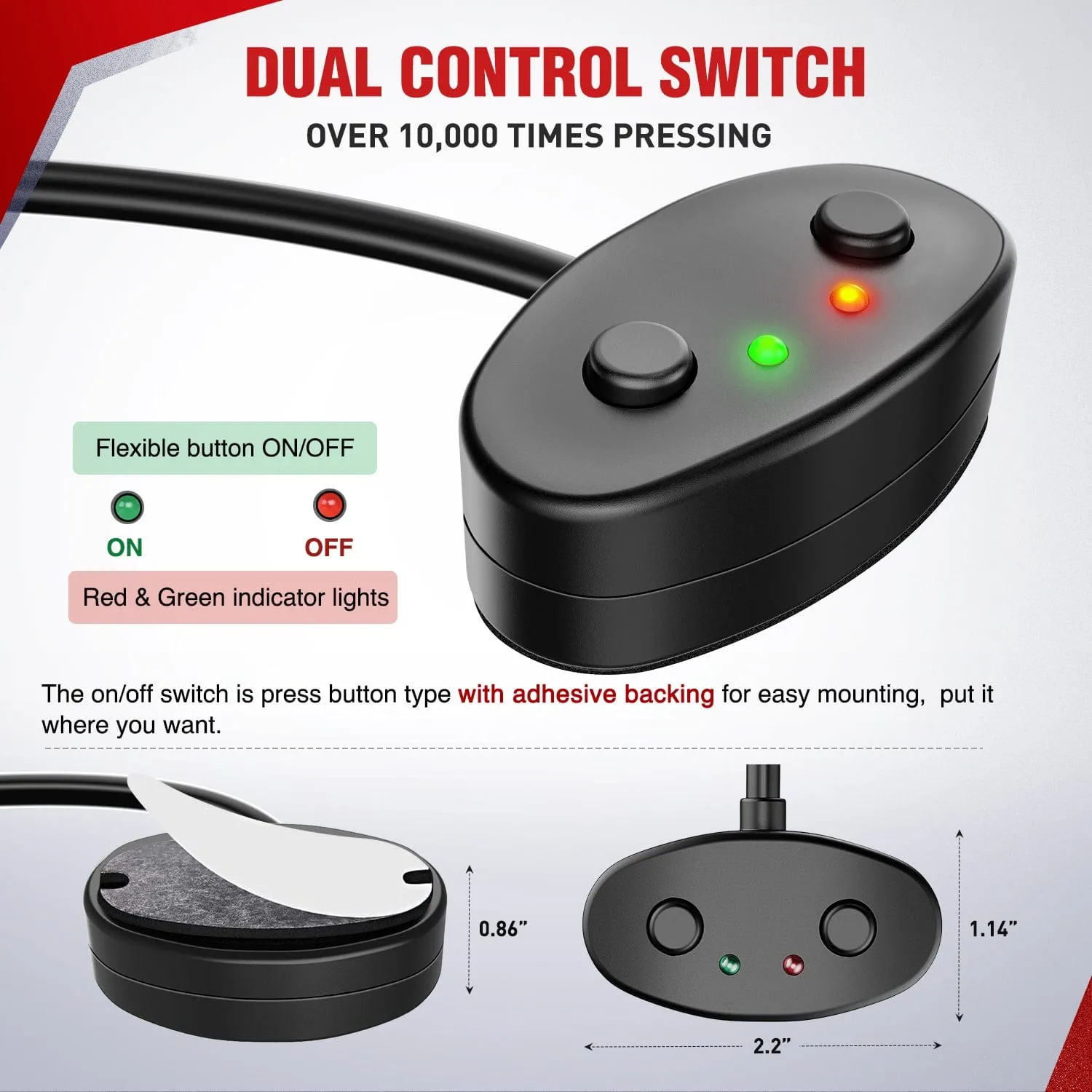

Dual Control Switch
Red indicator light lights up to indicate that the main light is on, and the green indicator light indicates that the DRL is on.
Automotive Relay
The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.
One Lead
With one set of light output connector, the wiring harness can hook up one LED lights within 450W at the same time.
Water-resistant Lid
Specially designed cap for tight sealing, efficiently prevent water and dust from entering, upgrading waterproof performance
Working principle and characteristics of the relay
It is actually an automatic switch that uses a smaller current to control a larger current. Relay plays the role of automatic adjustment, safety protection, and conversion circuits in the circuit.

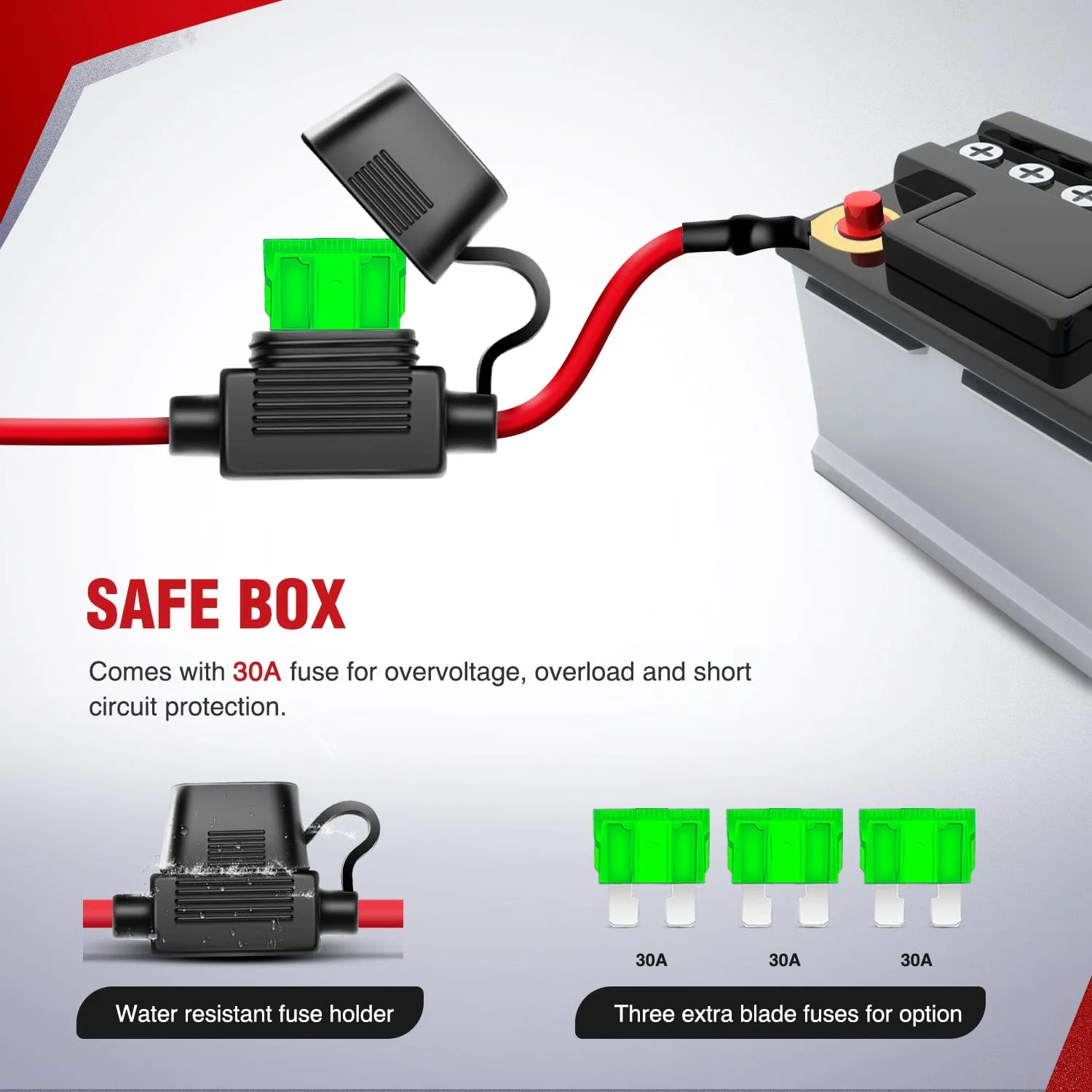

How Do Fuses Work?
They consist Of a fusible element that melts or vaporizes when the current exceeds the fuse rating, breaking the electrical connection and thus safeguarding electrical devices.
Product Details

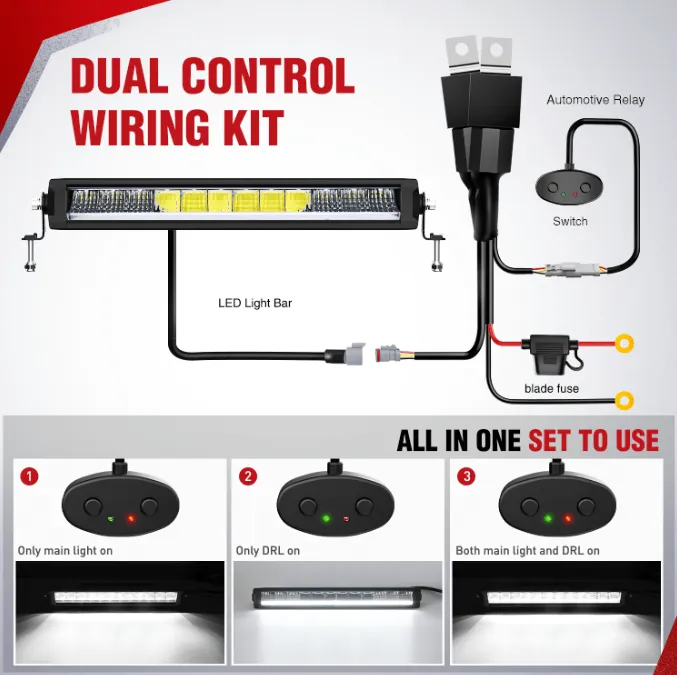

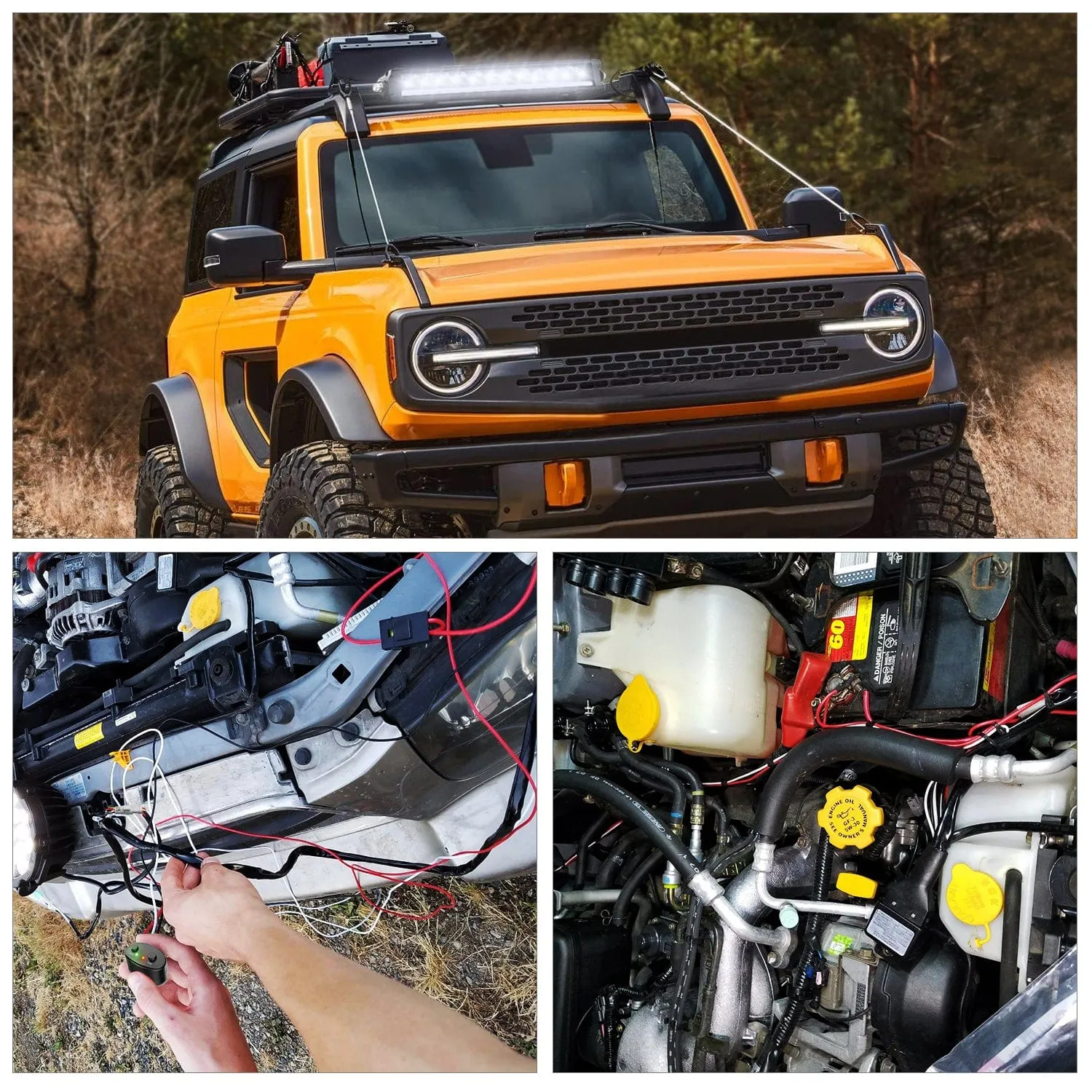

Installation Steps
Power Supply
Automotive Relay
Light Output Connectors
Switch Operation On-Off
